Name: Vacuum Feeder G380
Brand: ZHEJIANG MEST INTELLIGENCE EQUIPMENT CO., LTD.
Availability: InStock

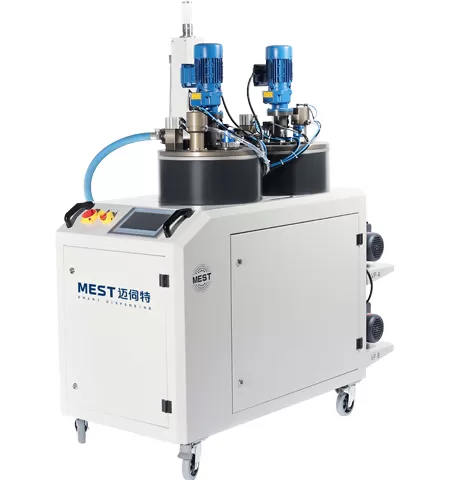

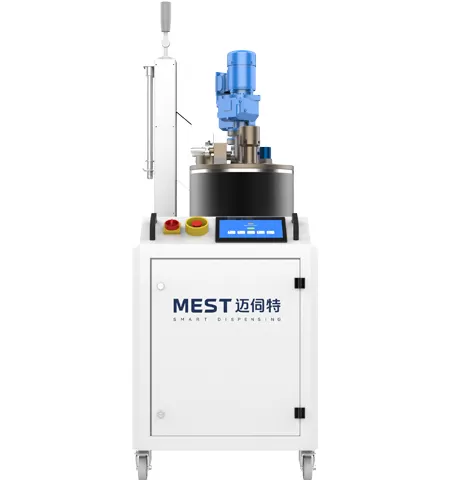

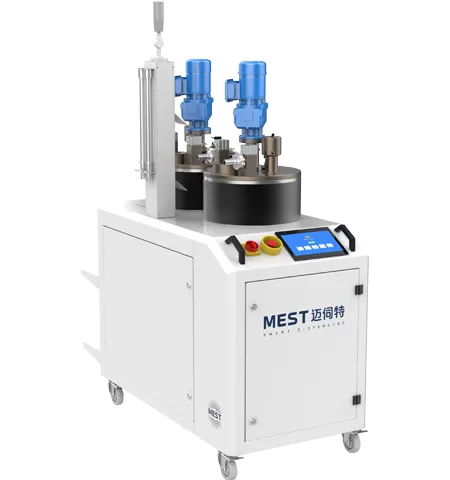

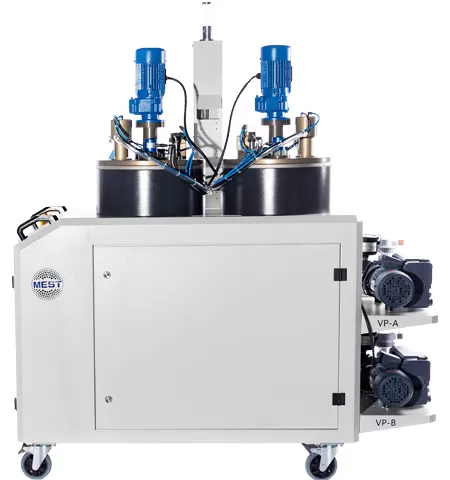

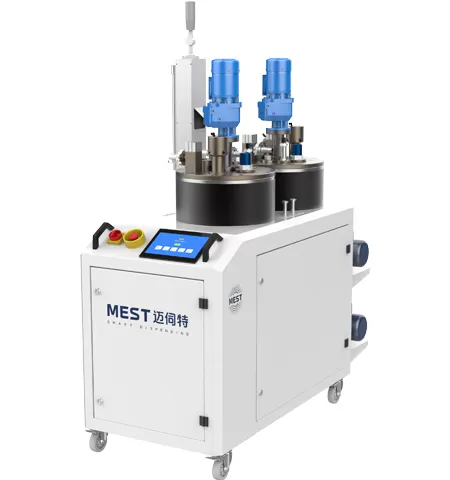

Vacuum Feeder G380

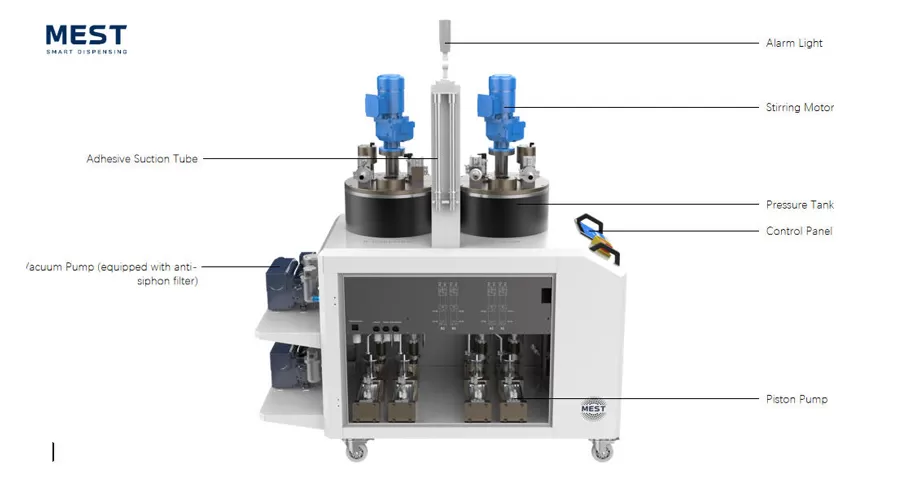

The MEST-G380 vacuum preparation unit, independently developed and manufactured by MEST, is designed for handling sensitive materials that react with moisture or need to be prepared under vacuum conditions. G380 vacuum feeder machine offers functions such as heating, stirring, and vacuum degassing for adhesive pre-treatment.

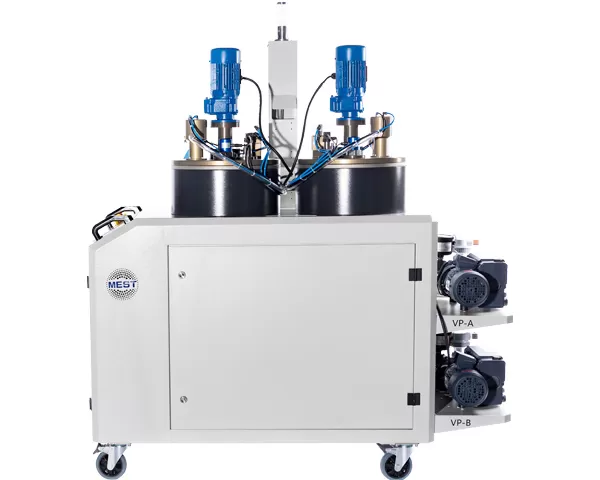

Features of Vacuum Feeder Machine G380

Product advantages:

As a leading vacuum feeder factory, MEST Technology designs the G380 vacuum feeder machine with cutting-edge features to meet the demands of precision fluid vacuum dispensing. Below are the key advantages that make this product stand out:

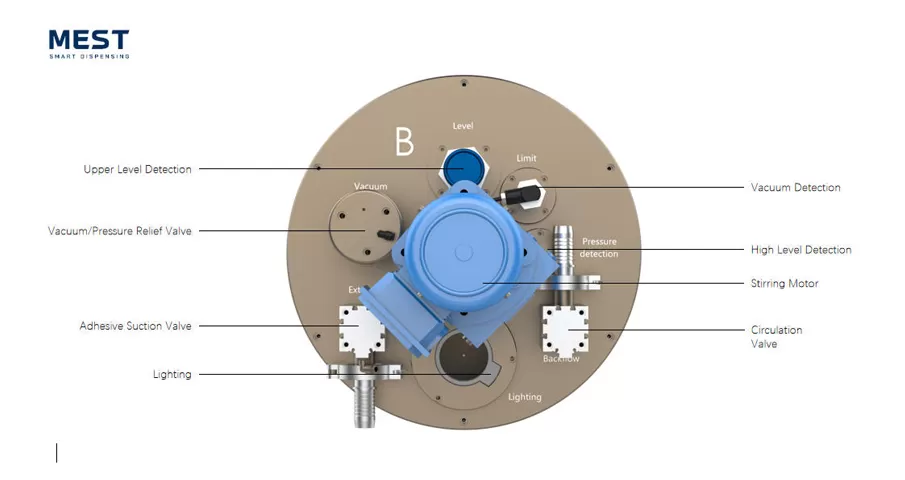

Vacuum supply: the resin is in a vacuum environment throughout the process, and the maximum vacuum can reach 2mbar. This ensures bubble-free, high-quality materials, a hallmark of our vacuum feeder machine.
Non-stop: The G380 vacuum feeder can supply materials continously, and glue can still be added normally during the working process.
Modularization: All components of of the G380 vacuum feeder machine are modular in design, allowing users to quickly add or remove equipment functions and facilitate maintenance.
Easy to use: Ul interaction is extremely user-friendly and can be used in a variety of complex scenarios.

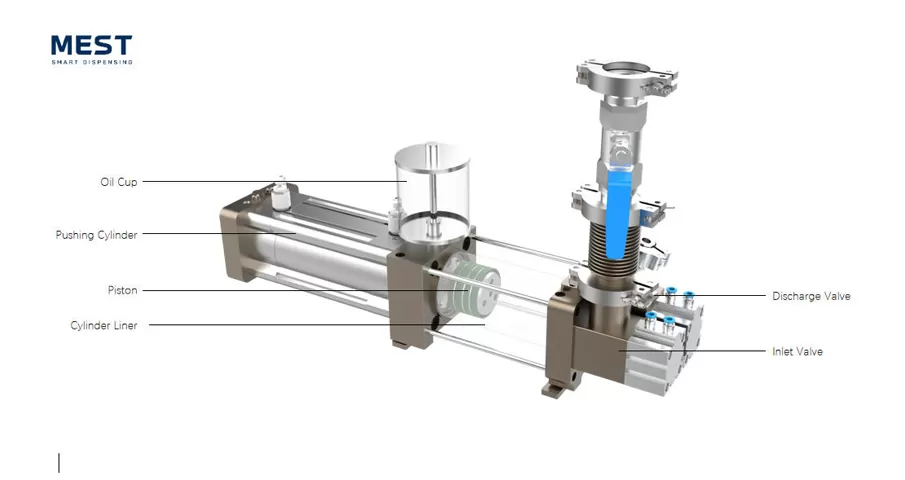

Durability: Featuring a specially designed piston pump structure, the G380 vacuum feeder machine offers a long service life and is ideal for handling glue with fillers, showcasing the robust quality delivered by our vacuum feeder factory.

Specifications of Vacuum Feeder Machine G380

Model

G380

Dimension (mm)

1650(W)*700(D)*1700(H)

Weight (kg)

≈ 300

Control system

PLC+ touch screen

Tank Type (L)

45/60/80

Tank material

304

Resin discharging method

plunger pump

Resin feeding method

Vacuum glue extraction

Applicable viscosity range (cps)

0-50000 (self-leveling colloid)

Vacuum value (mbar)

≤2

Heatingtemperature ('C )

25-100

Power(w)

5000

Input power

AC380V±10% 50Hz

Air source pressure (Mpa)

≥0.55

Applicable ambient temperature (°C )

0-50

Advantages of MEST's Vacuum Deaeration System

Our vacuum feeder machine quickly removes 99% of microbubbles, adapting to the rhythm of continuous production.

Scene adaptation: Bubbles that are difficult to naturally remove from high-viscosity adhesives (such as silicone and epoxy resins).

Effectively addressing industry pain points: For demanding applications such as endoscope bonding and lens sealing, our vacuum deaeration system effectively eliminates fatal defects such as optical distortion and seal failure caused by bubbles.

Intelligent linkage: With real-time monitoring by pressure sensor, if bubbles exceed the limit, the vacuum degassing unit will be automatically triggered for secondary degassing to prevent defective products from flowing into the next process.

FAQs of Vacuum Feeder Machine G380



What viscosity range of glue can your G380 vacuum feeder process?

 

The applicable viscosity range is from 0 to 50,000 cps.



What is the primary purpose of your meter mix machine G380?

 

The material preparation and feeding unit G380 is engineered for moisture-sensitive materials requiring vacuum preparation. It integrates heating (up to 100°C), stirring, and vacuum degassing (≤2 mbar) to eliminate bubbles and pre-condition adhesives for precision potting applications.



What industries commonly use this machine?

 

Key applications include:

Electronics: PCB encapsulation, LED potting

Automotive: Sensor potting, EV battery sealing

Aerospace: Void-free composite bonding



Is this supply systems for adhesives easy to maintain?

 

All components are modular, allowing for quick addition and removal of equipment functions and easy maintenance.
