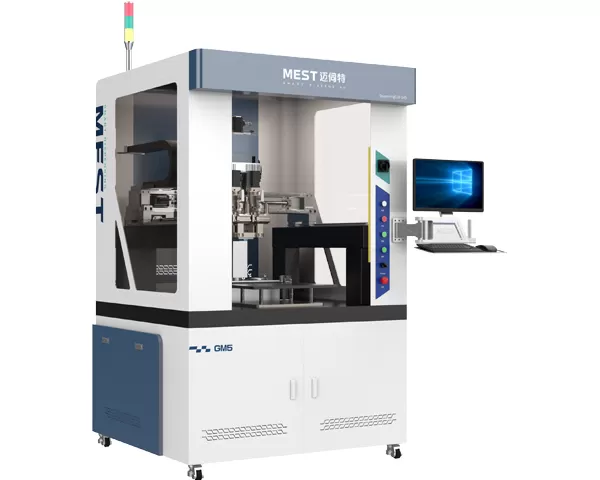

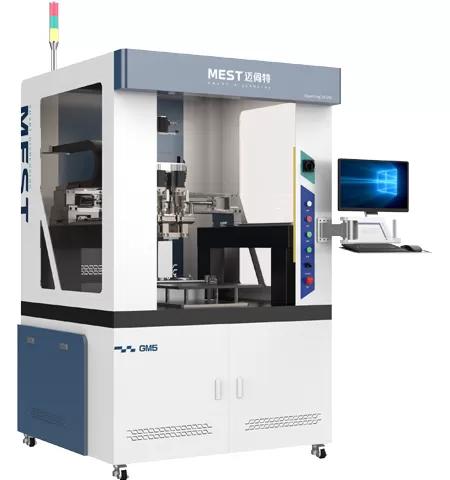

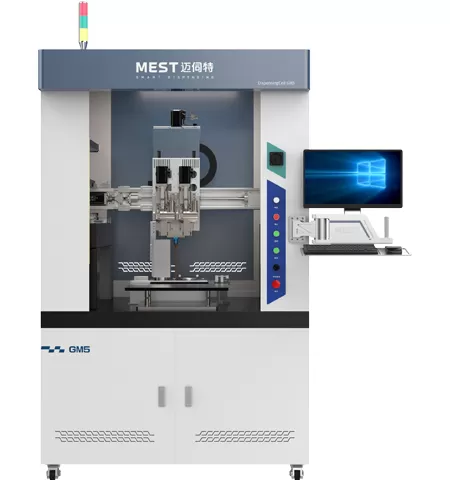

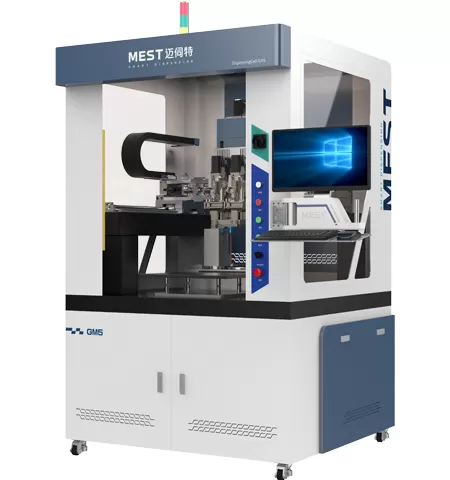

The MEST-GM series three-axis platform serves as a versatile mounting base for P20, GP30, and other dispensing heads. It enables high-speed, precise, and stable operation, ensuring the dispensing heads follow the set trajectory with accuracy. This guarantees consistent and reliable dispensing performance for customer products. The platform is particularly suited for applications in industries such as automotive electronics, photovoltaics, consumer electronics, household appliances, aerospace, marine navigation, deep-sea exploration, and the military sector.
Modularization: All components are modular in design, making maintenance easy.
Easy to Use: The Ul interaction is extremely user-friendly and can be used in a variety of complex scenarios.
| Model | MEST-GM542 |
| Overall size(mm) | 1600(W)*1250(D)*2500(H) |
| Working range(mm) | Customized |
| Control system | Industrial computer+ motion controller + control software independently developed by MEST |
| Maximum moving speed (mm/s) | 200 |
| Z-axis load (kg | < 30 |
| Power (w) | 1500 |
| Input power | AC380V+10% 50Hz |
| Gas source pressure (Mpa | >0.55 |
| Applicable ambient temperature (°c ) | 0-50 |
