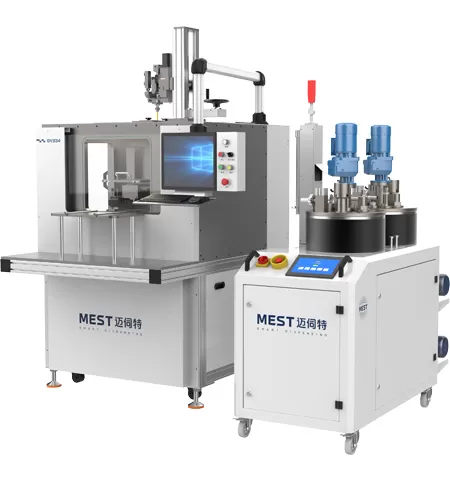

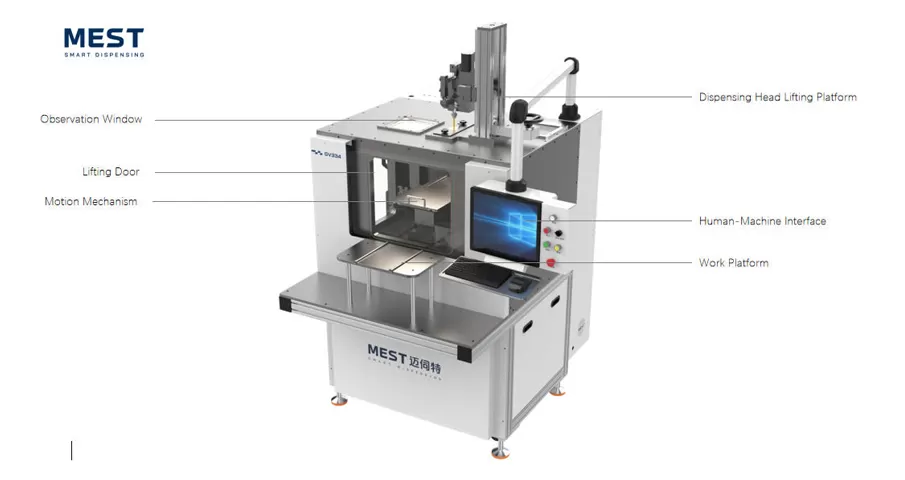

The GV334 vacuum dispensing station is designed for vacuum dispensing applications .Paired with the G380/280 feeding unitand P20 metering piston pump, it enables precise single or multiple nozzle dosing or potting, ensuring bubble-free products. The vacuum dispensing station can be customized to meet specifc size and specifcation requirements.

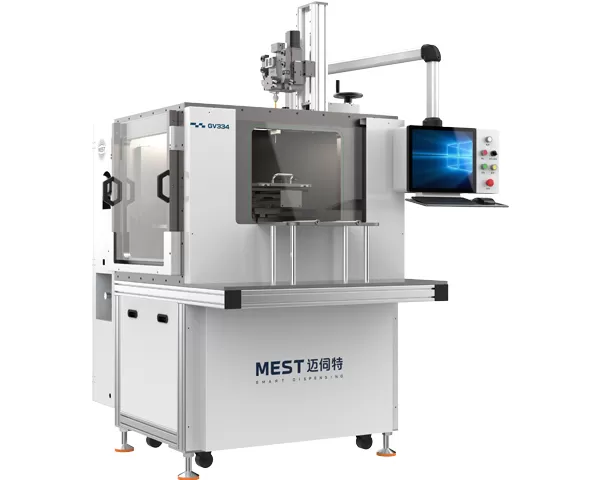

Vacuum potting: the glue and product are in a vacuum environment throughout the process, and the maximum vacuum can reach less than 2mbar.
Reliability: Potting in a full vacuum environment improves product reliability and durability.
Modularization:All components are modular in design, makingmaintenance easy.
Easy to Use: The Ul interactivity is extremely user-friendly and can beused in a variety of complex scenarios.
| Model | GV334 |
| Dimension(mm) | 1600*1250*2500 |
| Control system | PLC+MEST programming |
| Cell material | Mage Aluminum 6061 |
| Thickness(mm) | 35 |
| Platform Payload (kg) | ≤800 |
| Max workpiece | 800*800*800 |
| Vacuum value(mbar) | ≤2 |
| Power (w) | 12000 |
| Airsource Pressure(Mpa) | ≥0.5 |

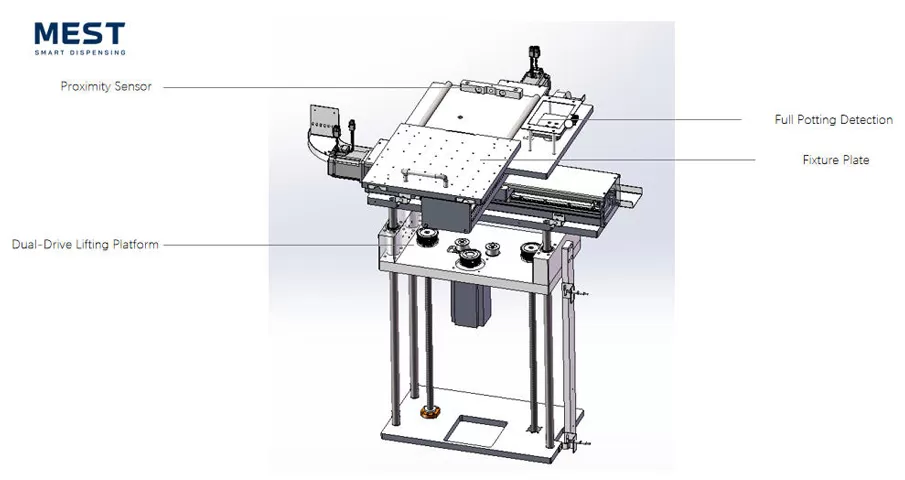

Utilizes dual-drive lead screws to ensure smooth lifting.
Employs pressure sensors to detect adhesive volume in the waste cup and triggers real-time alarms.
Uses proximity sensors to detect whether the product is in position.
