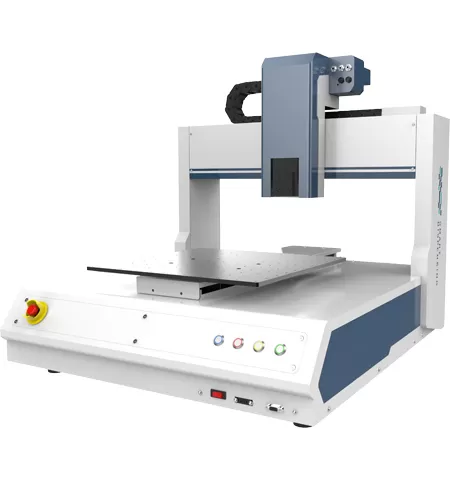

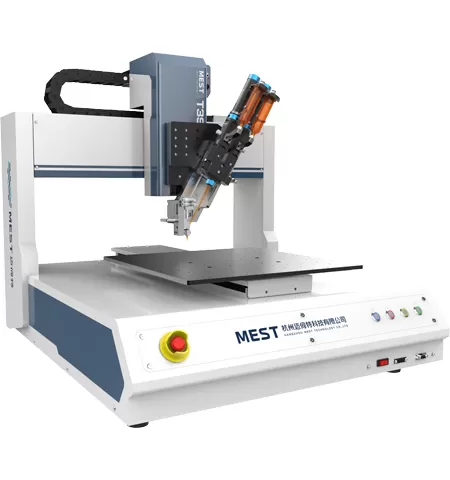

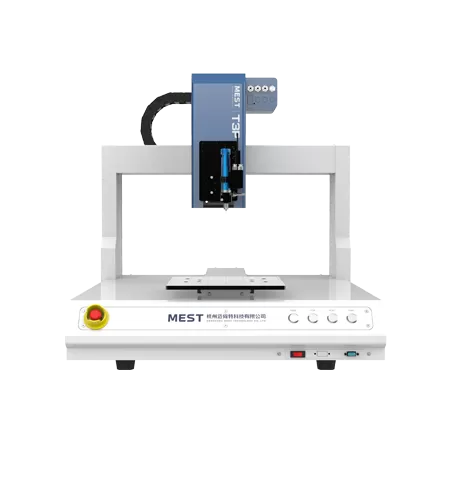

Automated Desktop Dispensing Robots

Automated Desktop Dispensing Robots

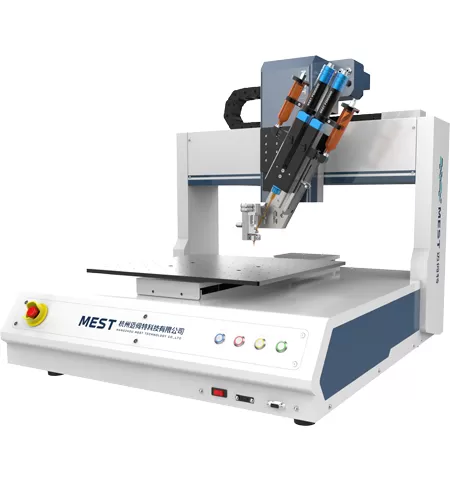

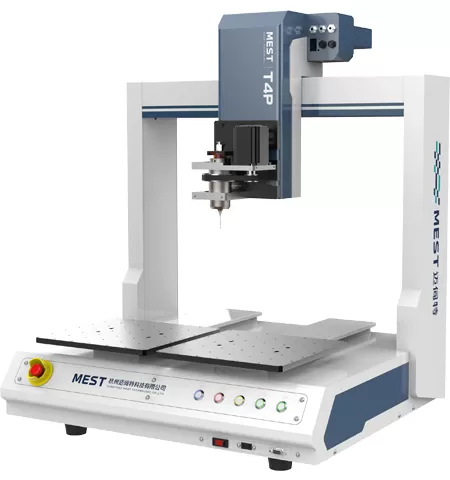

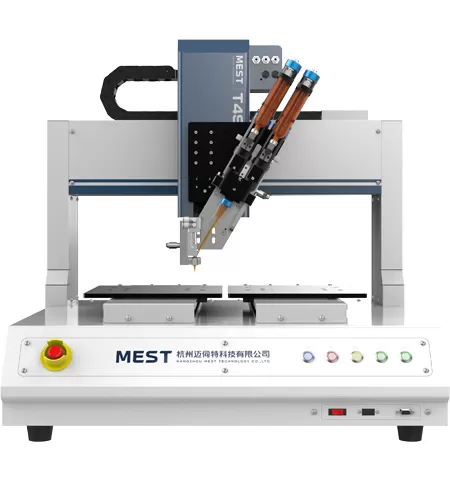

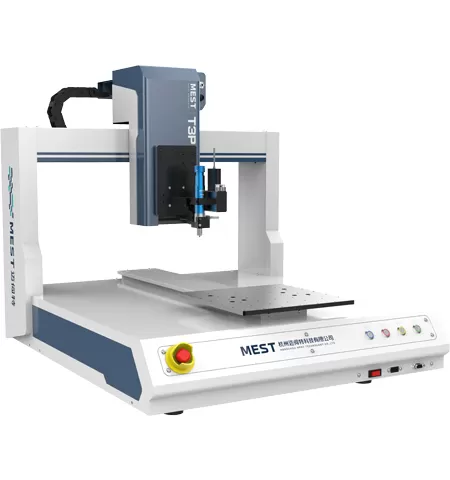

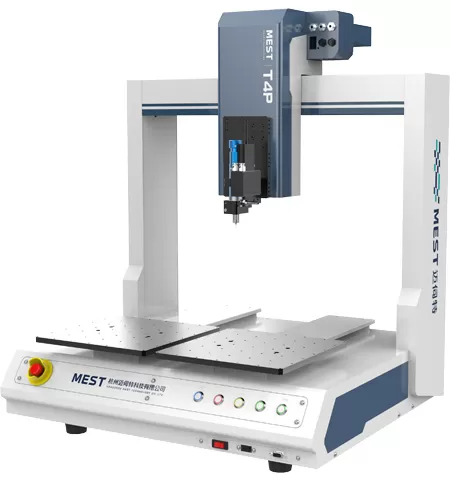

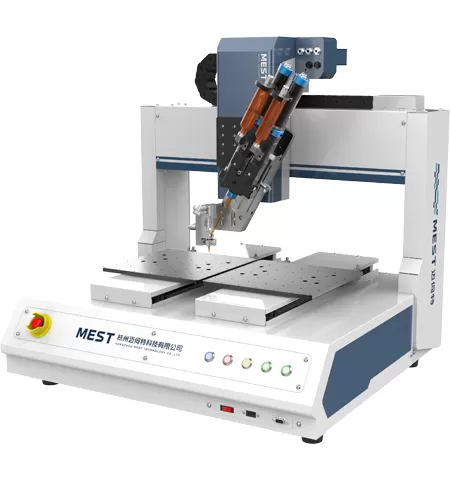

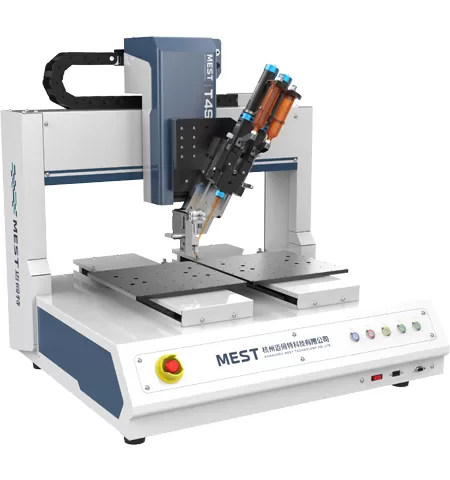

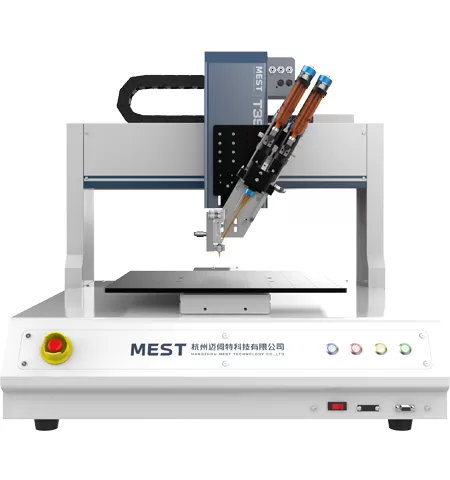

The desktop dispensing machine MEST-TS series, independently developed and manufactured by MEST Technology, features handheld teach pendant programming and supports three-axis linkage, four-axis linkage, and dual-platform configurations. It offers an excellent user-friendly interface with intuitive and easy-to-learn programming. With a large program capacity capable of storing 100 programs and 400,000 memory points, it provides exceptional versatility. Various dispensing heads can be selected to enable simultaneous multi-point operation, significantly enhancing work efficiency.

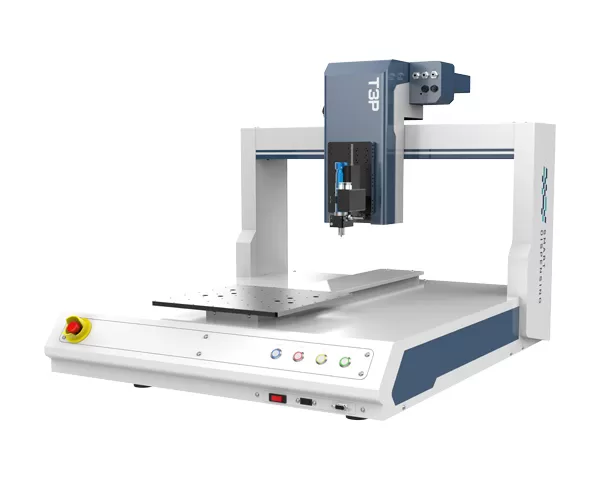

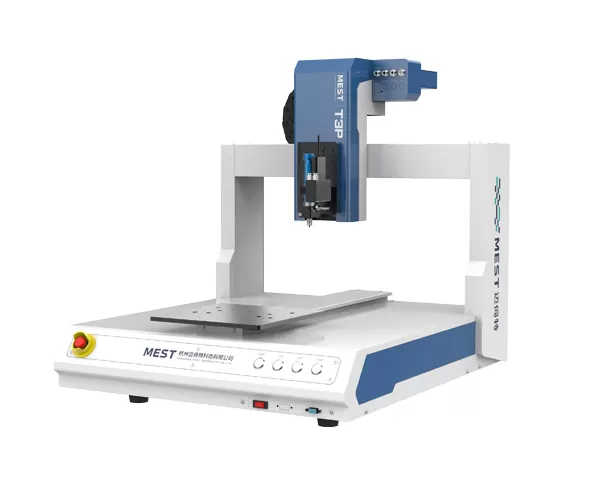

Features of Automated Desktop Dispensing Robots

Features of Automated Desktop Dispensing Robots
Product advantages:
  • Flexible operation modes: Supports handheld teach pendant or computer operation, with easy-to-learn programming for quick adoption in desktop dispensing environments.

    Multiple workstation options: Flexible switching between single and dual workstation dispensing modes, significantly improving production efficiency.

  • Compatibility with various products: Easily switch between dispensing trajectories for different products, meeting diverse production needs on our dispensing machine.

  • Precise parameter control: Adjustable dispensing volume, application speed, dispensing time, and stop time ensure high-precision operation within adhesive dispensing equipment.

Specifications of Automated Desktop Dispensing Robots

ModelMEST-T4S-5331MEST-T4S-R1/R2
Dimension (mm)740(W)*657(D)*737(H)521(W) *657(D) *737(H)
721(W)*856(D) *737(H)
Weight (kg)6360 / 76
Number of stationsDuplex stationsSingle Station
Working area (mm)500*300*300*100300*300*100*360
500*500*100*360
Control systemControl software independently
developed by MEST
Control software independently
developed by MEST
Operation interfaceProfessional dispensing softwareProfessional dispensing software
Industrial camera11
Drive modeServo motor + ball screwServo motor + ball screw
Maximum speed (mm/s)XY:500XY:500
Repeat accuracy (mm)±0.01±0.01
Positioning accuracy (mm)±0.01±0.01
Maximum load (kg)77
Ambient temperature (℃)0-500-50
Air source pressure (Mpa)0.60.6
