Name: Desktop Visual Dispensing Machine
Brand: ZHEJIANG MEST INTELLIGENCE EQUIPMENT CO., LTD.
Availability: InStock

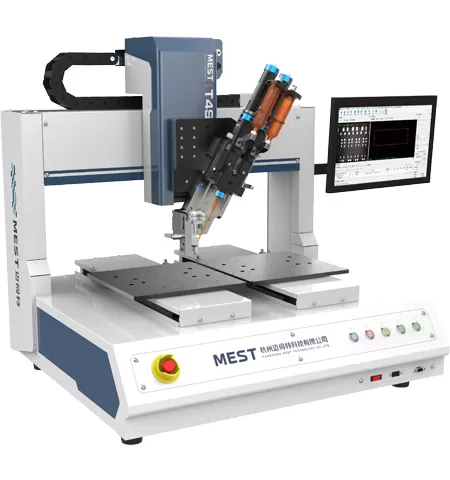

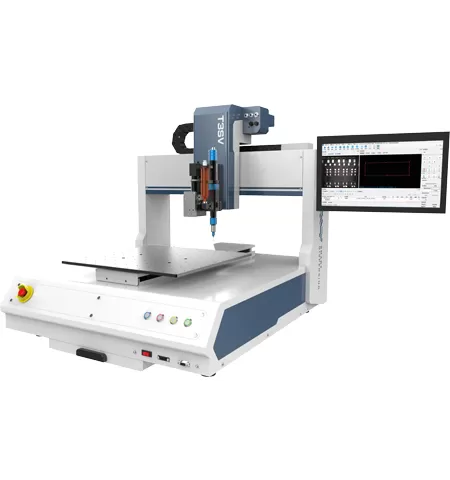

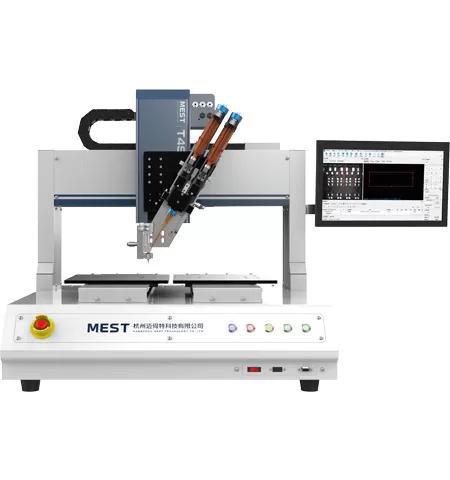

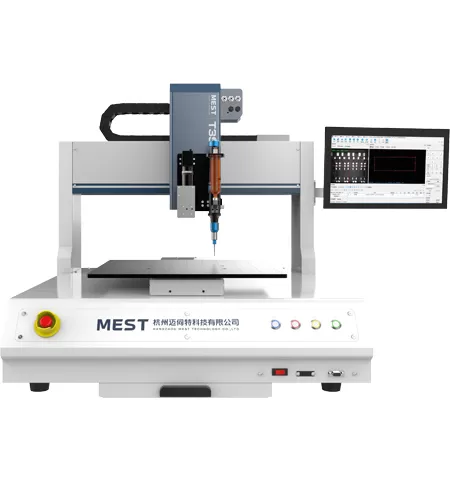

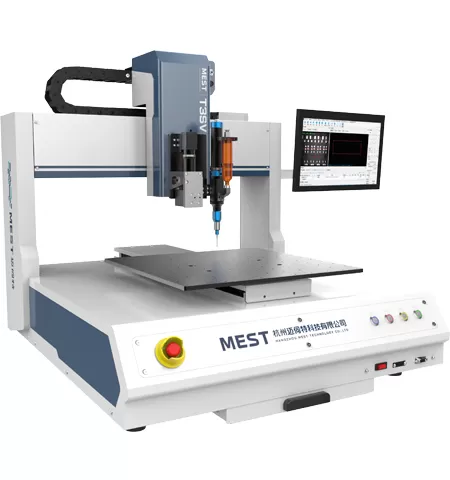

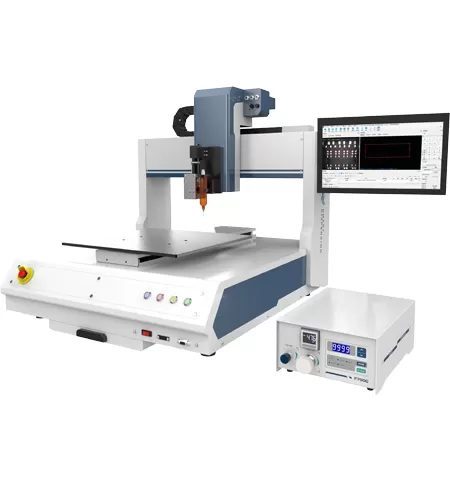

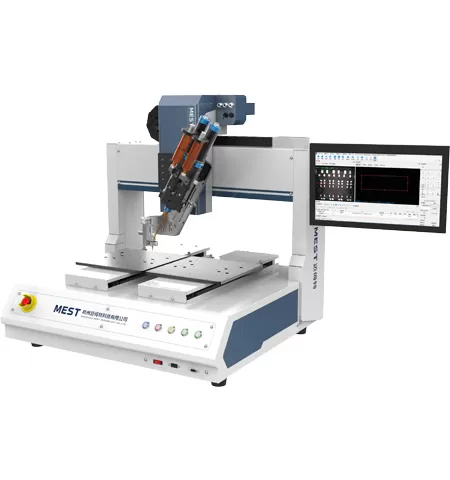

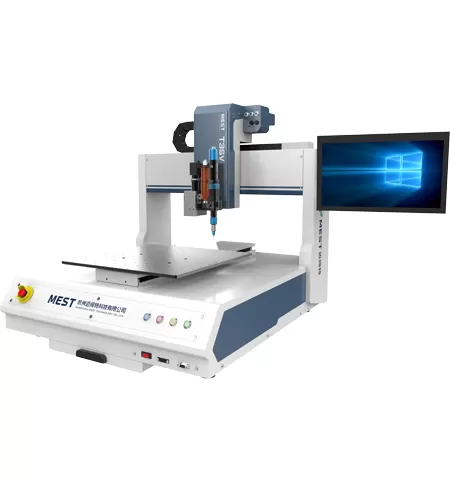

Desktop Visual Dispensing Machine

The MEST-TSV series, a large-platform visual dispensing machine independently developed and manufactured by MEST, offers outstanding dispensing capabilities and exceptional cost-effectiveness.

This versatile machine is designed for a wide range of industries, including automotive electronics, 3C electronics, biomedical, security monitoring, aerospace, military, semiconductors, Mini LED, and more. It is compatible with various fluids such as red glue, solder paste, silver paste, UV glue, one-component epoxy resin, electronic silicone, oil glue, ink, lubricant, crystal glue, thermal conductive glue, black glue, and others.

Features of Desktop Visual Dispensing Machine

Product advantages:

Flexible operation modes: Supports handheld teach pendant or computer operation, with easy-to-learn programming for quick adoption in desktop dispensing setups.
Multiple workstation options: Flexible switching between single and dual workstation dispensing modes, significantly improving production efficiency.
Compatibility with various products: Easily switch between dispensing trajectories for different products, meeting diverse production needs.
Precise parameter control: Adjustable dispensing volume, application speed, dispensing time, and stop time ensure high-precision operation on our dispensing machine.

Specifications of Desktop Visual Dispensing Machine

Model

MEST-T3SV-331

MEST-T3SV-551

MEST-T4SV-5331

Dimension (mm)

521(W)*657(D)*737(H)

721(W)*856(D)*737(H)

740(W)*657(D)*737(H)

Weight (kg)

Number of stations

Single station

Duplex stations

Working area (mm)

300*300*100

500*500*100

Control software independently
500*300*300*100

Control system

Control software independently
developed by MEST

developed by MEST

Operating interface

Windows

Industrial camera

0.3-5million pixels optional

Drive mode

Servo motor +ball screw

Servo motor + ball screw

Maximum speed(mm/s)

XY:500 Z:200

Maximum acceleration

XY:0.5 Z: 0.3

XY:0.5 Z:0.3

XY:0.5 Z: 0.3

Repeat accuracy (mm)

±0.01

Positioning accuracy (mm)

±0.01

Maximum load (kg)

Air source pressure (Mpa)

0.6

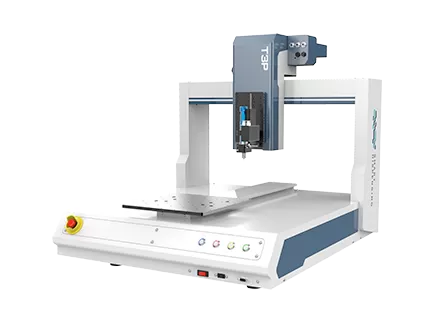

Application of Visual Desktop Dispensing Robot

Precision Dispensing for Smartphones and Consumer Electronics

Our visual desktop dispensing robot delivers micron-level accuracy for smartphone micro-components, including 5G antenna adhesion, camera module securing, and earpiece sealing for improved dust and water resistance within adhesive dispensing equipment.

Enhanced Reliability for New Energy Vehicle Electronics

From automotive sensors to ECU units, our 3-axis dispensing robots provide consistent material application on both planar and complex curved surfaces. With integrated vision compensation, we ensure zero-defect dispensing of thermal pastes and waterproof sealants—even on challenging geometries like battery packs.

High-Accuracy Packaging for Lab-Grade Equipment

We support µm-level dispensing for microfluidic chips and biosensors. Equipped with high-resolution vision positioning, our desktop dispensing robot enables picoliter-level fluid control for sealing and microchannel fabrication in cell culture devices.

Advanced Solutions for Optoelectronic Packaging

For optical communication devices and LiDAR assemblies, our multi-axis robots(4 axis dispensing robot and 5 axis dispensing robot) perform angled dispensing and precise bonding of prismatic components.

Efficient Manufacturing for LED Display Modules

Supporting the transition from Mini-LED to Micro-LED, our visual desktop dispensing robot allows simultaneous chip bonding and dam encapsulation via the adhesive dispensing robot.

FAQs on Desktop Visual Dispensing Robot



How does the visual system enhance dispensing accuracy?

 

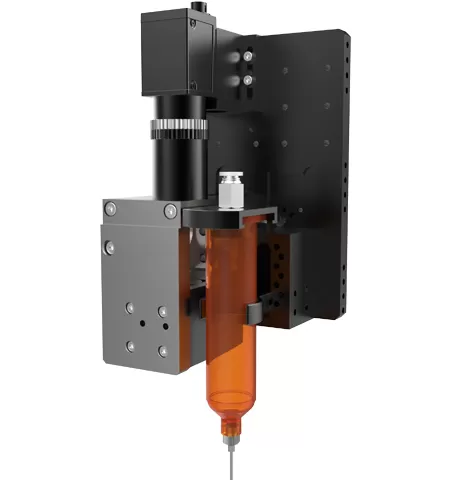

The built-in vision desktop dispensing robot uses cameras and algorithms to detect surfaces, align nozzles, and correct deviations in real-time, ensuring precision down to microns and reducing errors significantly compared to manual methods.



How is the dispensing path programmed on your visual desktop dispensing robot?

 

The path programming is a seamless, software-driven process:

Software Programming: Our proprietary vision software allows you to easily create and define the dispensing path. This is done by either importing a CAD file or by using the software's intuitive interface to manually plot points directly onto the live camera feed of your workpiece.
Communication: Once the path is set, the software communicates the precise coordinates and instructions directly to the machine's integrated motion control card.
Execution: The motion control card then translates these digital commands into high-precision electrical signals.
Motion: These signals are sent to the stepper or servo motors, driving them to execute the exact programmed movements with exceptional accuracy and repeatability.



Do you offer training and technical support after purchase?

 

Absolutely. We provide comprehensive remote training via video call to get your team started quickly.



What is the delivery time for this 3 axis/4 axis dispensing robot?

 

Delivery typically takes 4-6 weeks from order confirmation, depending on customization and shipping logistics.
