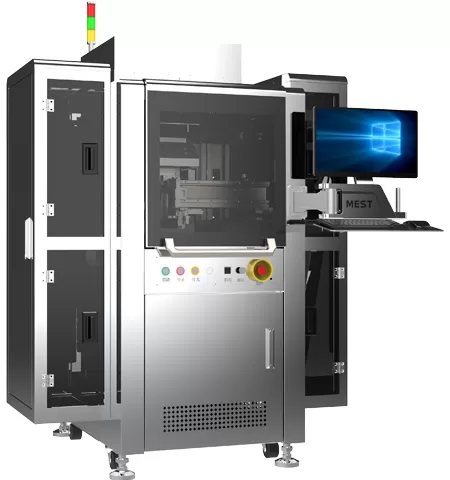

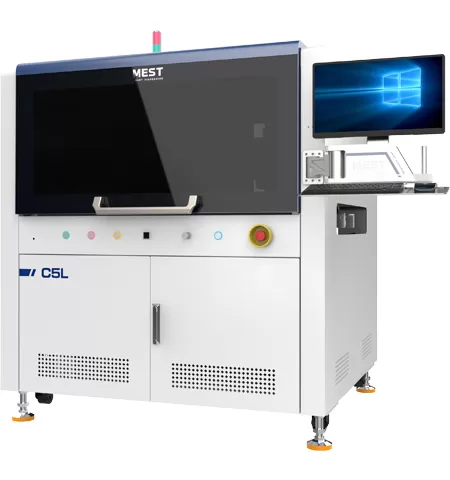

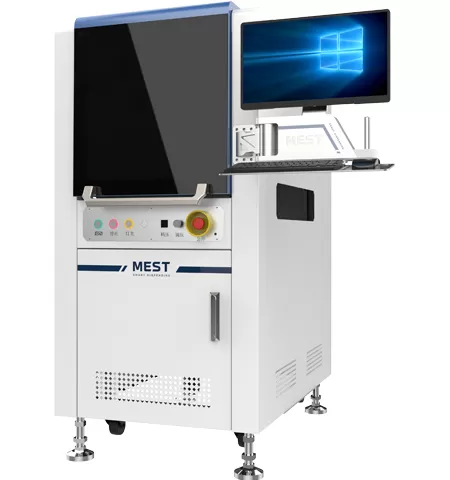

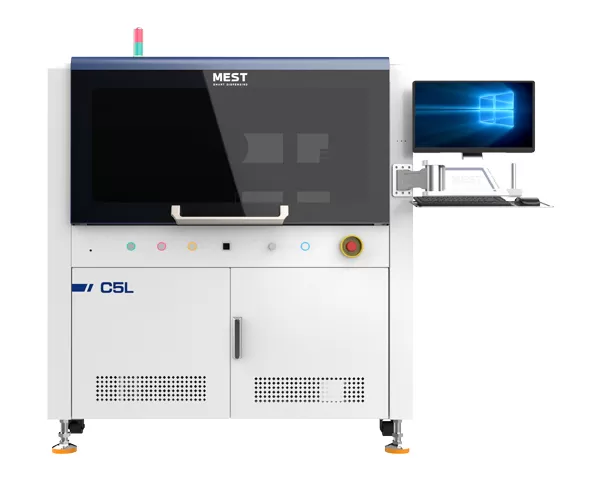

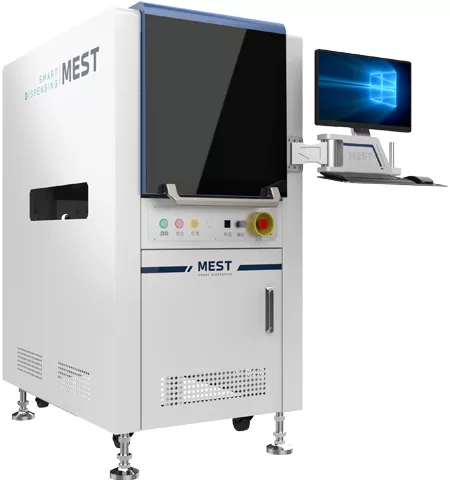

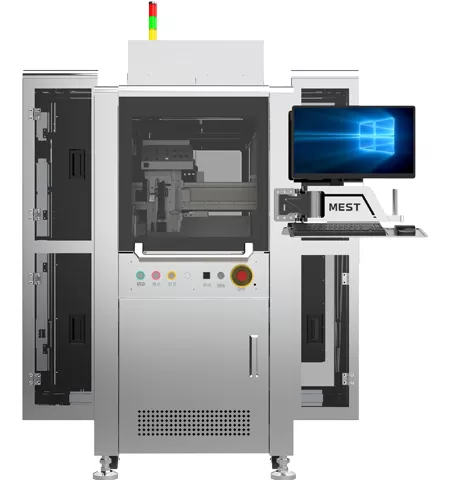

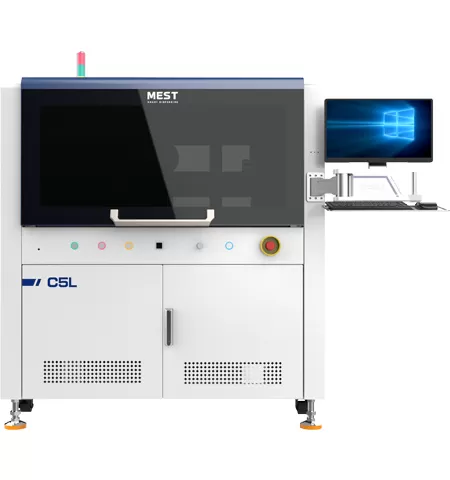

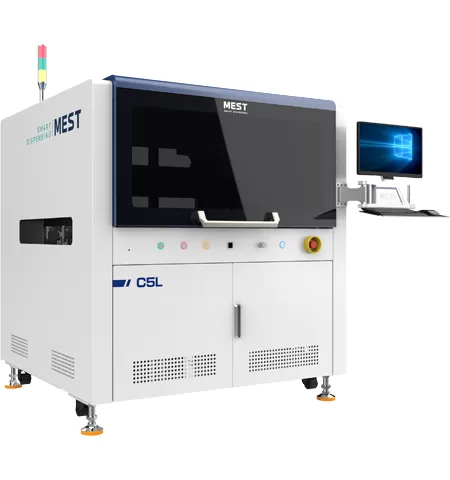

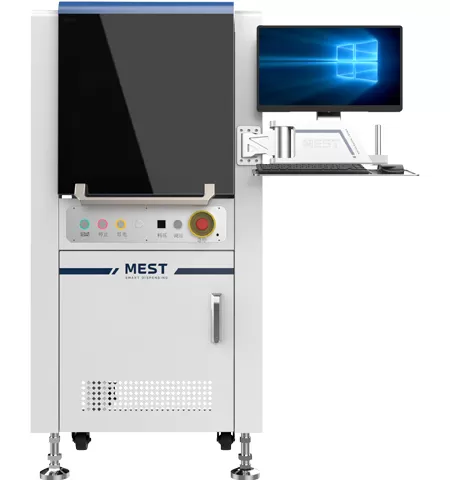

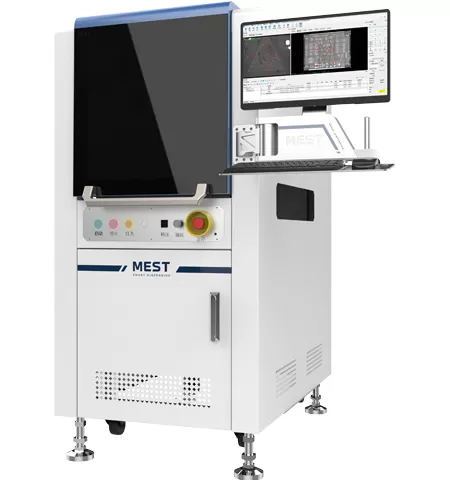

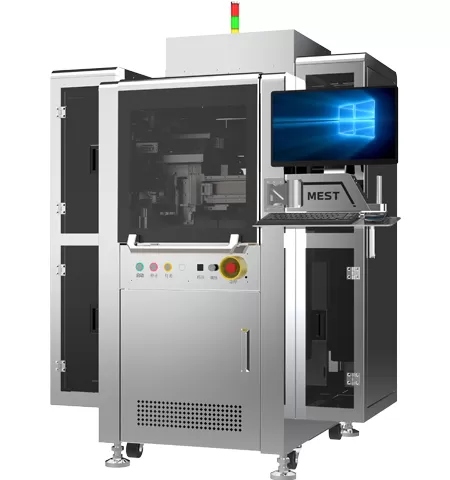

The online visual dispensing machine MEST-C5 has the characteristics of high effciency, inteligence, and high precision.lt can be used in automotive,3C electronics, biomedical, security monitoring, aerospace and military industry, semiconductor, Mlini LED and other industries, suitable for red glue, solder paste, silver paste, UV glue, one-component epoxy resin, electronic silicone, oil glue, ink, lubicant crstal glue, thermal conductive glue, black glue and other fluids.
Equipped with a CCD vision positioning system and visual inspection system, dosing result can be detected.
Repeatability accuracy of 0.01mm.
Compatible with various valve types,including pneumaticjet valves, piezo valves, screw valves, and spray valves.

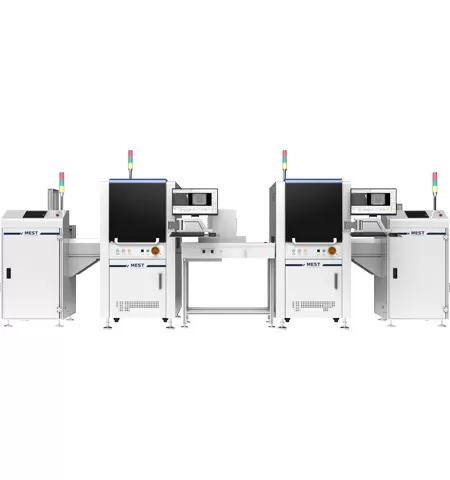

Easily integrated with automatic loading and unloading conveyors
| Model | C5 |
| Dimension(mm | 770(W)*1350(D)*1550(H) |
| Weight (kg) | 700 |
| Monorail working area | 350*475 |
| Vision system | Intelligent positioning, flyshot, AVI detection |
| Drive mode | servo motor + ball screw |
| Maximum speed (mm/s) | XY：1000 Z：300 |
| Maximum acceleration(g) | XY：1.0 Z：0.3 |
| Repeat accuracy(mm) | ±0.005 |
| Positioning accuracy(mm) | ±0.01 |
| Maximum load (kg) | 3.5 |
| Conveyor belt height from the ground (mm) | 900±30 |
| Input power | AC220V±10% 50Hz |
| Air source pressure (Mpa) | ≥ 0.6 |
The path to smarter, smaller, and more powerful MEMS devices is built on microscopic, reliable interconnects. This demands unparalleled precision in solder paste deposition. Our solder paste dispenser machine ensures consistent, tail-free deposits for PCB dispensing application, perfectly protecting delicate micro-components.
Discover our customized solder paste dispensing solutions. Our experts are ready to optimize your MEMS production process.
Secure surface-mount components quickly and reliably with precision-dispensed red adhesive. Our automated inline dispenser delivers dot-after-dot consistency for strong temporary bonding prior to wave soldering. This process safeguards against common defects like tombstoning and component movement, ensuring flawless board assembly and maximum throughput.
Boost your SMT line's reliability and yield. Connect with our experts for a personalized solution.
