Name: Piston Metering Pump P20
Brand: ZHEJIANG MEST INTELLIGENCE EQUIPMENT CO., LTD.

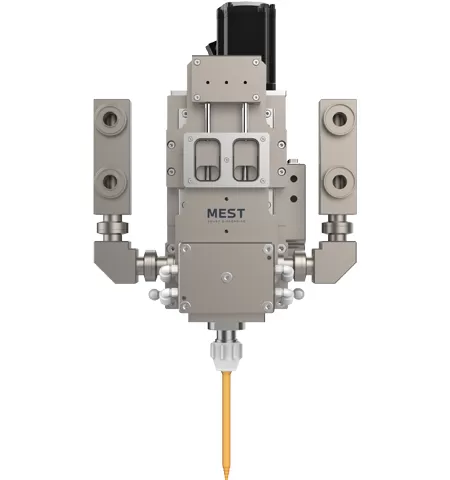

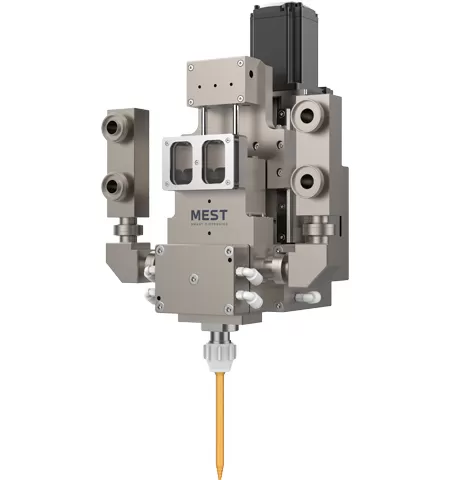

Piston Metering Pump P20

The P20 piston metering pump dispensing valves are precision volumetric dispensing systems specifically engineered to handle both 1C and 2C materials. Renowned for their exceptional accuracy, these piston metering pumps ensure a consistent mixing ratio, guaranteeing the utmost process reliability.Built on a sturdy mechanical engineering foundation, the P20 systems are available in various sizes and models to suit different requirements. Their metering cylinders are meticulously sized to match the required volume and mixing ratio precisely.

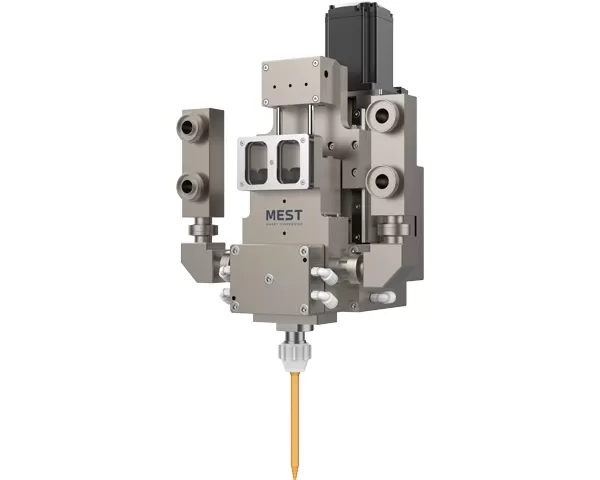

Features of Piston Metering Pump P20

Product advantages:

The Piston Metering Pump P20 is equipped with a stepper motor and a linear guide for its lifting mechanism. This combination ensures precise control over the pump’s movement, allowing for accurate and consistent dosing.
The pneumatic control for valve operation includes both inlet and outlet airflow, ensuring smooth and efficient valve operation.
To ensure optimal performance, the Piston Metering Pumps P20 includes monitoring sensors that track the status of both the input and outlet valves.
The Piston Metering Pump P20 also features a monitoring sensor for the cylinder filler level.
An inspection glass is integrated into the Piston Metering Pump P20, allowing operators to easily check the rinsing liquid level.
Fully airtight design ensuring 100% seal, ensuring a 100% seal.
Maintenance is quick and straightforward with the Piston Metering Pump P20.
Exceptional durability and resistance to wear. The Piston Metering Pumps P20 is built to last, with exceptional durability and resistance to wear.

Specifications of Piston Metering Pump P20

Model

P20

Filler or abrasive

positive

Max. dispensing quantity (ml)*

Volume flow (ml/s)**

0.3-10

Volume mixing ratio***

100:100 to 100:7

Metering method

piston

Dispensing method

Intermittent

Viscosity range (CPs)

100-2000000

Power (w)

400

Dimensions (mm)

250(W)*170(D)*360(H)

Weight (kg)

Min. dispensing quantity(ml)

0.01

Dispensing accuracy

±2%

Input power

AC220V±10% 50Hz

Input air pressure(Mpa)

>0.5

Operating temperature (° C)

0-50

Optimal Application Scenarios: When to Choose Piston Metering Pump Over Gear Metering Pumps?

Ultra-Precise Metering

Piston metering pumps excel in applications requiring repeatable micro-dosing, while gear metering pumps for viscous products prioritize throughput over exact volume control.
Shear-Sensitive Fluids

Piston technology maintains material integrity for delicate formulations, unlike gear pumps which generate higher shear forces during transfer.
Sanitary & Critical Environments

Piston systems offer cleaner, contamination-free operation for regulated industries, whereas gear pumps suit heavy industrial applications with tolerant material specifications.

Customization Options for Piston Metering Pumps P20

1. Material Selection

As one of the leading dispensing machine manufacturers, we pride ourselves on offering a variety of material options, including stainless steel and PTFE, to ensure compatibility and longevity in diverse applications.

4. Specialized Coatings and Finishes

Specialized coatings and finishes, such as anti-corrosive and sanitary options, are available to enhance the pump’s performance in harsh environments.

2. Flow Rate and Pressure Adjustments

Our Piston Metering Pump P20 can be customized to deliver precise flow rates and pressures, catering to the specific requirements of your application.

3. Integration with Existing Systems

We provide various options for electrical and pneumatic connections, ensuring seamless integration with your current setup.
